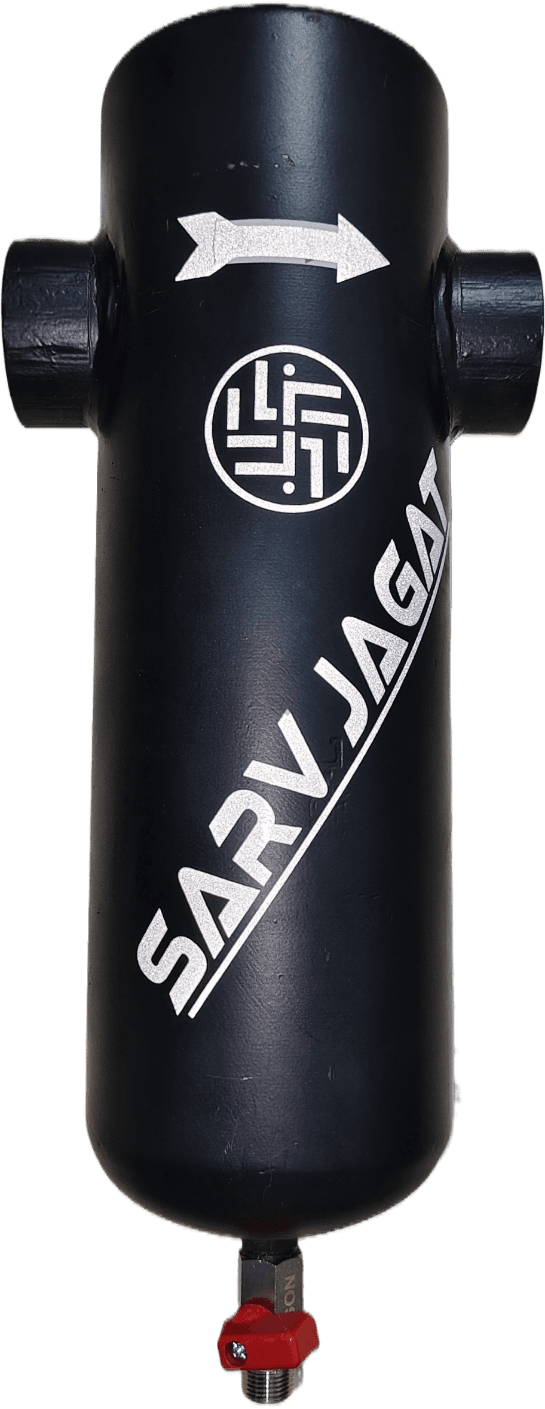

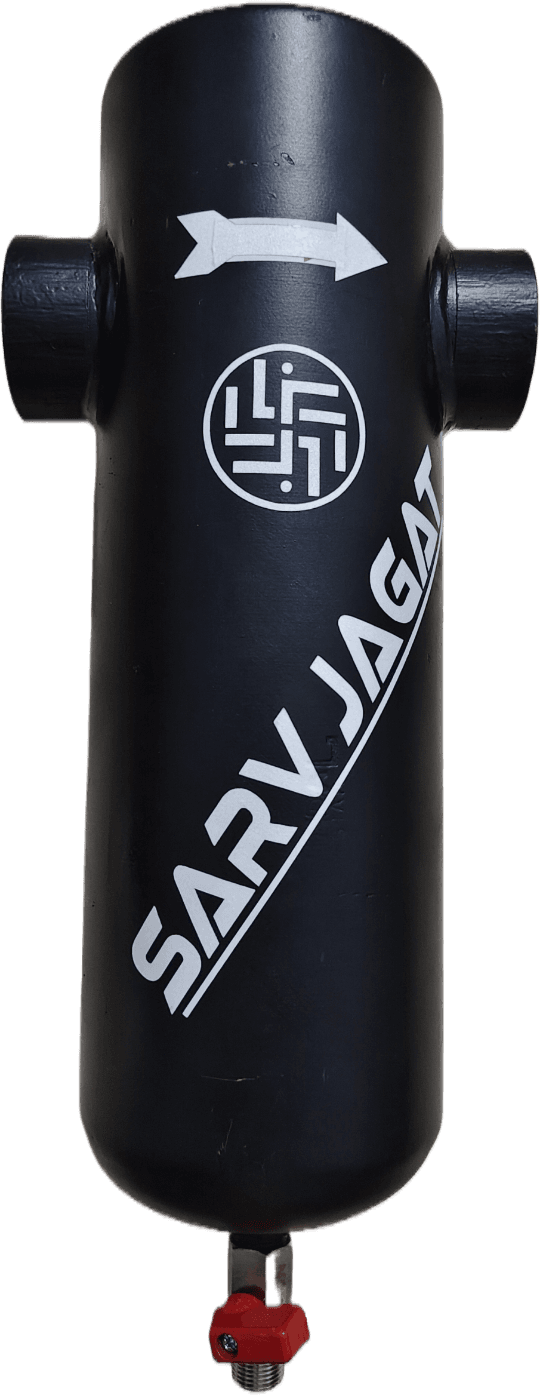

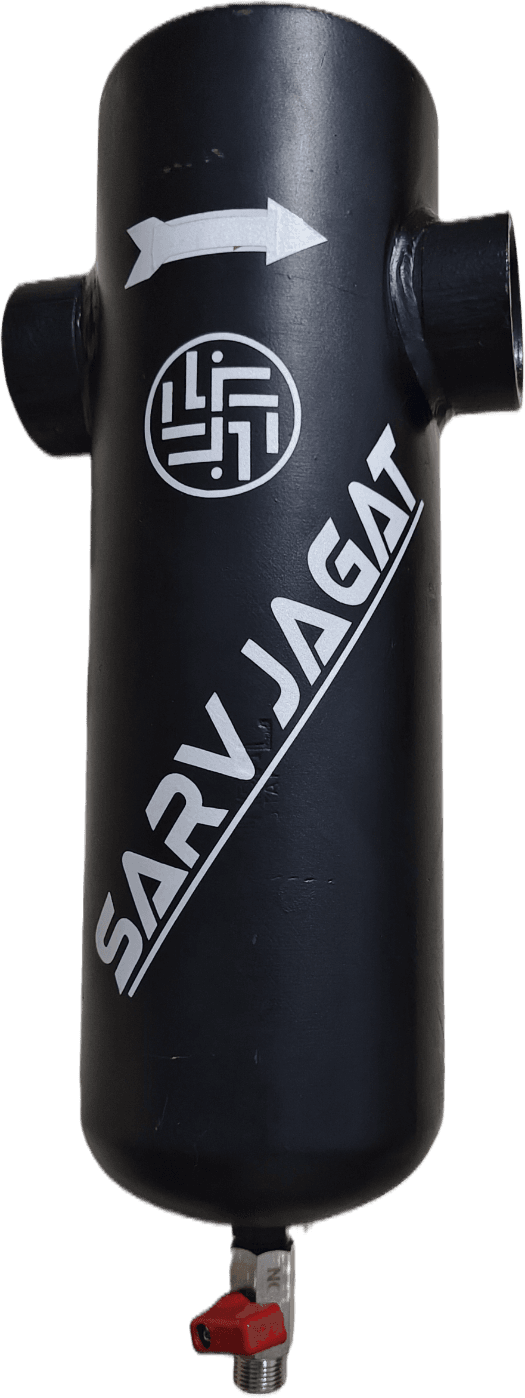

The SJ Moisture/Air-Water Separator by Sarv Jagat Corporation is designed to separate bulk water and condensed moisture from compressed air. With a capacity of 125–200 CFM and a maximum working pressure of 16 Bar, it is suitable for food processing, agriculture, rice mills, poha manufacturing, grain processing, packaging, and various other industrial applications.

Key Features

- Capacity: 125–200 CFM

- Maximum Working Pressure: 16 Bar

- Designed to separate bulk water and condensed moisture

- Directional airflow design

- Bottom condensate drain arrangement

- Suitable for new and existing compressed-air systems

- Helps protect downstream machinery from bulk water contamination

Benefits of an Air-Water Separator

Moisture can accumulate in compressed-air pipelines, receiver tanks, and equipment during normal compressor operation. The SJ Air-Water Separator helps remove bulk water from the compressed-air stream, supporting cleaner air distribution and reducing the amount of liquid water reaching downstream equipment.

When correctly installed and maintained, it helps protect pneumatic machinery, supports reliable equipment operation, and reduces the risk of moisture-related maintenance issues.

Food and Agriculture Industry Applications

The SJ Moisture/Air-Water Separator is suitable for compressed-air systems used in various food-processing and agricultural applications, including

- Poha and rice processing plants

- Flour mills and grain-processing facilities

- Dal and pulse-processing plants

- Spice and masala manufacturing units

- Food packaging and sealing industries

- Snack and namkeen manufacturing

- Dairy processing and edible oil packaging

- Fruit and vegetable processing plants

- Seed cleaning and sorting facilities

- Cattle-feed and agricultural processing plants

Installation and Compressed-Air Treatment

Depending on the system design, the separator can be installed after the air compressor or receiver tank or upstream of critical production machinery.

For more effective compressed-air treatment, it can be used in combination with refrigerated air dryers, pre-filters, after-filters, activated carbon filters, and automatic condensate drain valves. The appropriate combination depends on the required air quality, operating pressure, airflow, and application.

Note: An air-water separator is designed to remove bulk liquid water. It does not remove all water vapour or guarantee oil-free compressed air. Additional treatment equipment may be required to meet specific air-quality requirements.

Technical Specifications

- Product Name: SJ Moisture / Air-Water Separator

- Capacity: 125–200 CFM

- Maximum Working Pressure: 16 Bar

- Type: Air-Water / Moisture Separator

- Application: Bulk Water Separation from Compressed Air

- Drain Arrangement: Bottom Condensate Drain

- Suitable Industries: Food Processing, Agriculture, Manufacturing, and General Industry

Complete Compressed-Air Solutions by Sarv Jagat Corporation

Sarv Jagat Corporation provides a comprehensive range of industrial compressed-air solutions, including rotary screw compressors, VFD screw compressors, piston compressors, refrigerated air dryers, pre-filters, after-filters, activated carbon filters, moisture separators, automatic drain valves, and air receiver tanks.

We help industries select suitable compressed-air equipment and air-treatment systems based on their operating requirements, airflow capacity, working pressure, and air-quality needs.

Sarv Jagat Corporation – Complete Compressed-Air Solutions for Industry.
