Complete Compressed Air Filtration System | Pre Filter, Dryer, After Filter & Carbon Filter
Complete compressed air treatment system with pre-filter, refrigerated air dryer, after-filter, activated carbon filter, moisture separator, and automatic drain for cleaner and drier compressed air.
9/29/2026
Industry
| Read Time | 3 min read |
| Status | published |
| Tags | Complete Compressed Air System, Compressed Air Filtration System, Pre Filter, Refrigerated Air Dryer, After Filter, Activated Carbon Filter, Carbon Filter, Air-Water Separator, Moisture Separator, Automatic Drain System, Auto Drain, Compressed Air Treatment, Industrial Air Filtration, Clean Dry Compressed Air, Oil Vapour Removal, Moisture Removal, Industrial Air Dryer, Pneumatic Air System, Compressed Air Accessories, Industrial Machinery, Air Compressor Filtration, Air Treatment System, Sarv Jagat Corporation |
Article Overview
Clean, dry, and properly treated compressed air is essential for reliable industrial operations. Sarv Jagat Corporation presents a complete compressed air treatment setup designed to improve air quality by reducing moisture, water, oil particles, oil vapour, and other contaminants from the compressed air system.

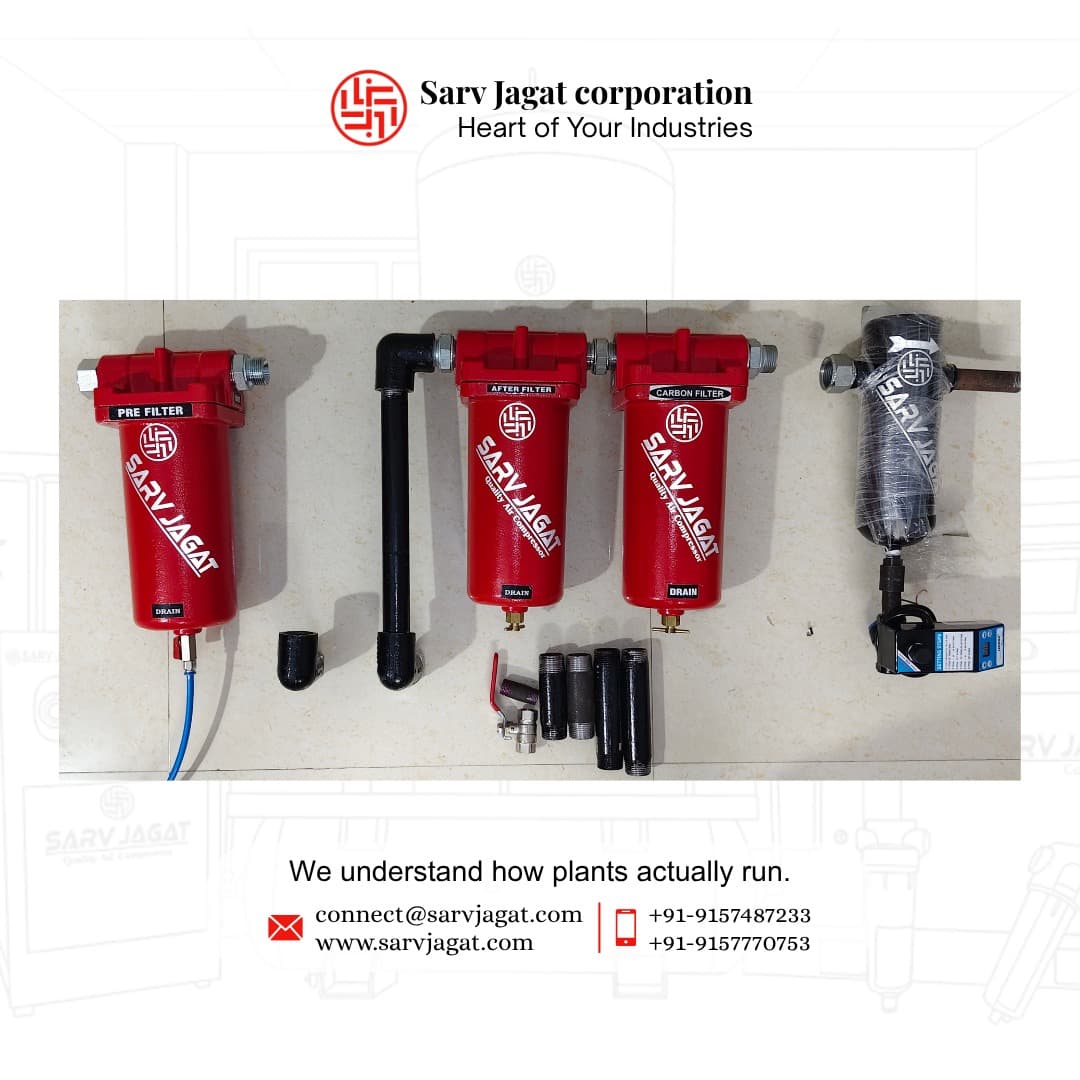

This general air treatment setup includes a pre-filter installed before the refrigerated air dryer, followed by an after-filter and activated carbon filter after the dryer. An air-water moisture separator with an automatic drain can also be installed after the air compressor or at the end of the compressed air system, depending on the application and system requirements. This complete arrangement helps deliver cleaner and drier compressed air for pneumatic machinery, automation systems, production equipment, and various industrial applications. ⚙️ Complete Air Treatment Setup ✅ Pre-filter before the refrigerated air dryer ✅ Refrigerated Air Dryer for Moisture Removal ✅ After-filter after the air dryer ✅ Activated Carbon Filter for Oil Vapour and Odour Reduction ✅ Air-Water/Moisture Separator ✅ Automatic Condensate Drain System ✅ Industrial Piping and Accessories ✅ Suitable for Complete Compressed Air Systems 🔧 How the System Works The pre-filter is installed before the refrigerated air dryer to help remove larger particles, water droplets, and other contaminants from the compressed air. The refrigerated air dryer then reduces moisture by cooling the compressed air and separating the condensed water. After the dryer, the after filter provides additional filtration for finer particles and contaminants. The activated carbon filter is used where further reduction of oil vapour and odour is required to improve the quality of compressed air supplied to downstream equipment and processes. The air-water moisture separator helps separate liquid water and moisture from the compressed air line. Its Automatic Drain system removes the collected condensate automatically, reducing the need for frequent manual draining. 🏭 Suitable Applications This compressed air filtration and treatment setup is suitable for: • Manufacturing Industries • Fabrication Units • CNC and Engineering Machines • Food Processing Machinery • Textile Machinery • Packaging Machines • Pharmaceutical Applications • Laser and Plasma Cutting • Automobile Industries • Plastic and Injection Moulding • Pneumatic Automation • General Industrial Machinery 🎥 This setup showcases how different compressed air treatment components can be arranged within an industrial compressed air system, including the pre-filter, refrigerated air dryer, after-filter, activated carbon filter, air-water separator, automatic drain, industrial piping, and other accessories. Sarv Jagat Corporation provides complete compressed air solutions, including rotary screw air compressors, VFD/VSD air compressors, reciprocating piston compressors, refrigerated air dryers, air receiver tanks, pre-filters, after-filters, micro-filters, activated carbon filters, moisture separators, automatic drain systems, industrial piping, accessories, and customized compressed air systems.
